Product information

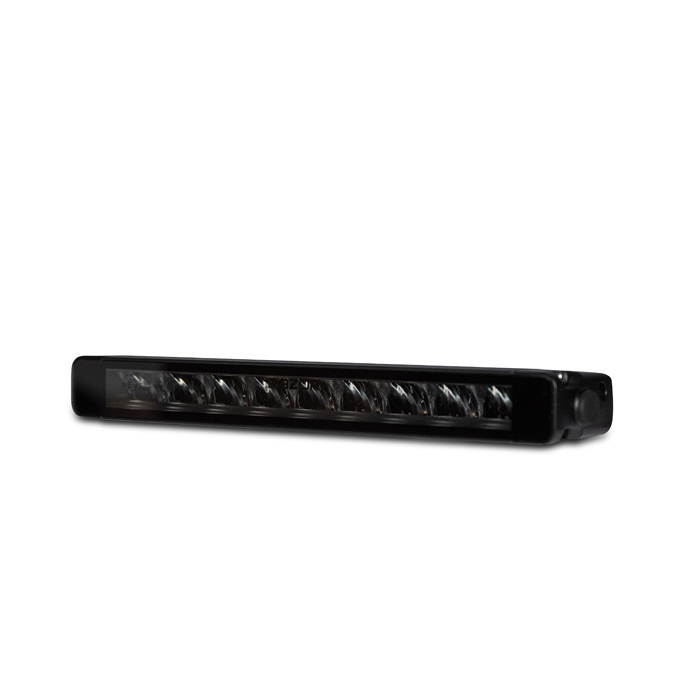

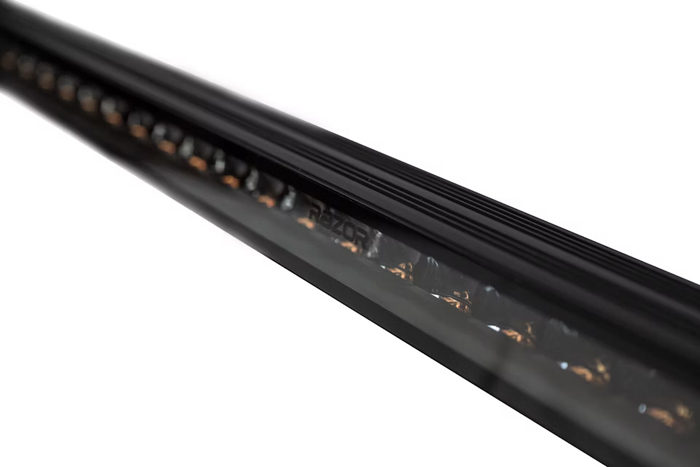

Razor Slimbar Pro is an LED ramp with outstanding performance for its slim format. Razor Slimbar Pro is available in three different sizes and the thin design means that this ramp is easy to mount on most cars with parking sensors, radar, cameras and more in the front.
The Razor Slimbar Pro is only 33mm high, making this ramp one of the slimmest on the market. Despite the low height, they have succeeded in a reflector design which, in combination with high-performance diodes, provides an enormous amount of light on the road. The light pattern is created so that you get a good width near your car and a sharp tip that gives a good length. This combination is unbeatable of light images is unbeatable when it comes to creating safety and security along dark roads.

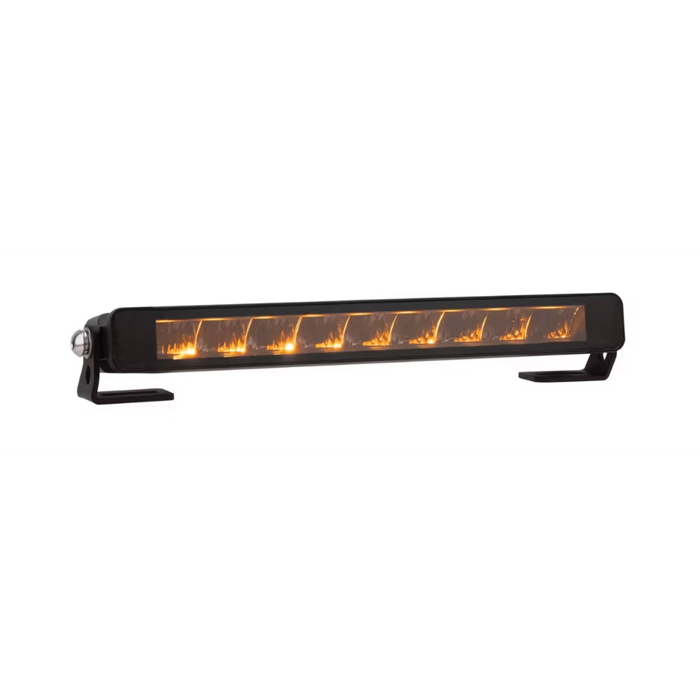

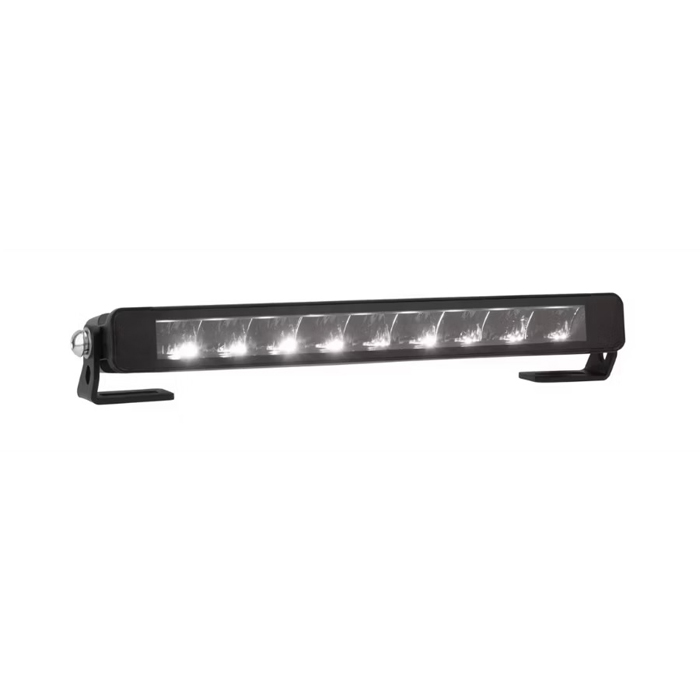

The Razor Slimbar Pro Series LED Ramps come with a discreetly placed position light that is only visible when the position light is on. In the off position, the position light's diodes are completely hidden. The hidden diodes for the position light also give a very beautiful and pleasant glow, in white or orange.
Choose between 10", 20" or 30", or combine, for example, two 10" hinged ramps in the grill of your car.
Product benefits:

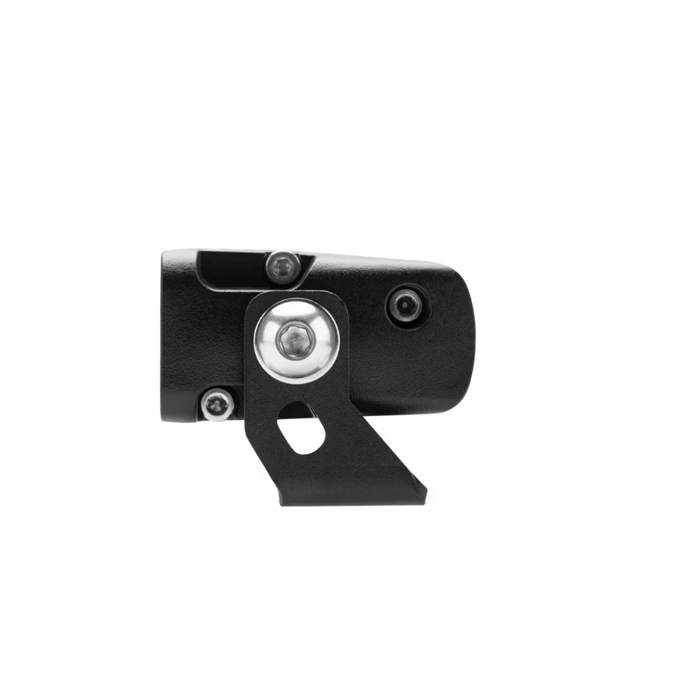

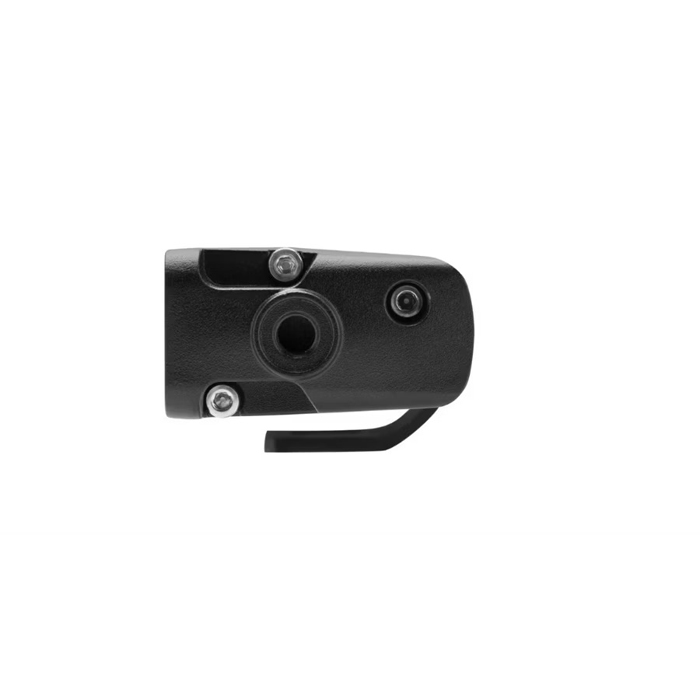

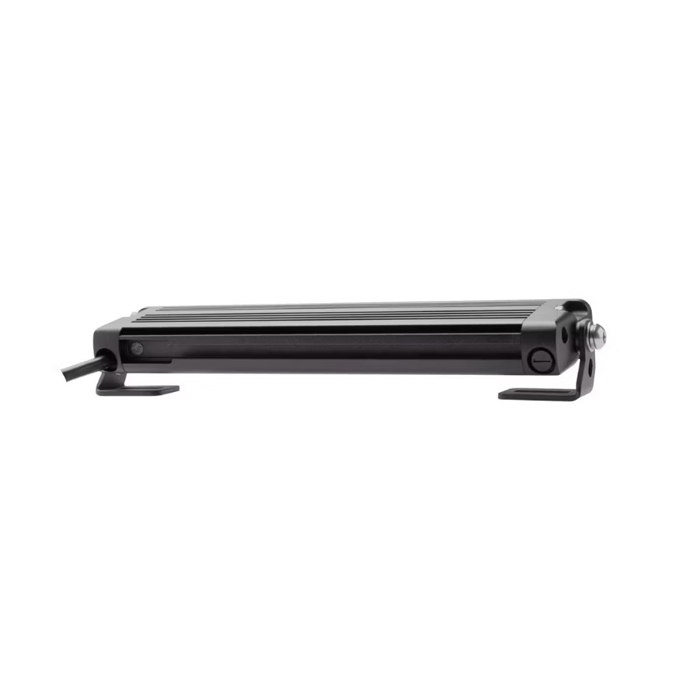

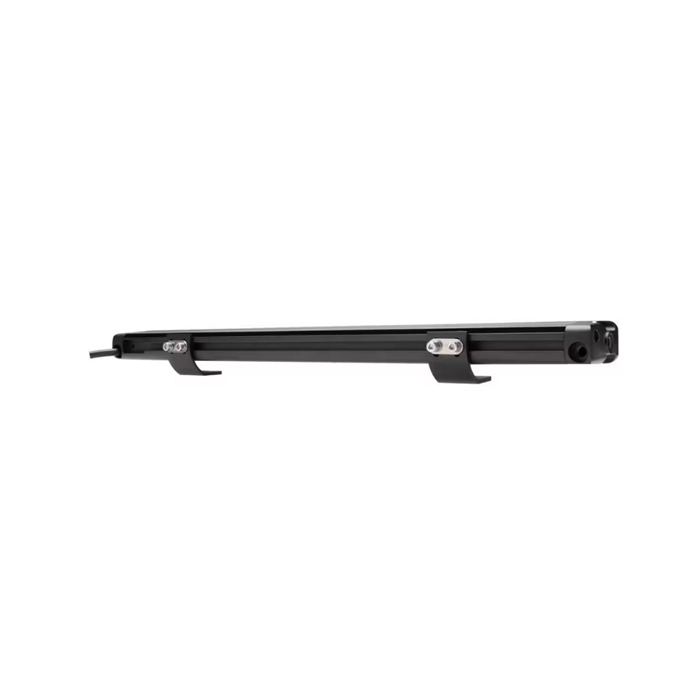

Mounted via the included side mounts, as well as mounts underneath in the rail that are adjustable.
Only 33 mm high, which makes this ladder very easy to assemble.
Full-coverage Lexan lens to avoid paint shedding due to stone shot
What do I need to install this LED ramp?
Razor Slimbar Pro led ramps come with DT-2 connector with two extra loose leads to control the position light. This solution gives you several flexible connection solutions. It also comes with a DT-2 female connector that has four loose conductors at the other end to further increase the connection possibilities.
The Razor Slimbar Pro is only 33mm high, making this ramp one of the slimmest on the market. Despite the low height, they have succeeded in a reflector design which, in combination with high-performance diodes, provides an enormous amount of light on the road. The light pattern is created so that you get a good width near your car and a sharp tip that gives a good length. This combination is unbeatable of light images is unbeatable when it comes to creating safety and security along dark roads.
The Razor Slimbar Pro Series LED Ramps come with a discreetly placed position light that is only visible when the position light is on. In the off position, the position light's diodes are completely hidden. The hidden diodes for the position light also give a very beautiful and pleasant glow, in white or orange.
Choose between 10", 20" or 30", or combine, for example, two 10" hinged ramps in the grill of your car.
Product benefits:
Mounted via the included side mounts, as well as mounts underneath in the rail that are adjustable.
Only 33 mm high, which makes this ladder very easy to assemble.
Full-coverage Lexan lens to avoid paint shedding due to stone shot
What do I need to install this LED ramp?
Razor Slimbar Pro led ramps come with DT-2 connector with two extra loose leads to control the position light. This solution gives you several flexible connection solutions. It also comes with a DT-2 female connector that has four loose conductors at the other end to further increase the connection possibilities.
Specifikationer:
| Razor Slimbar Pro 10" | Razor Slimbar Pro 20" | Razor Slimbar Pro 30" | |
|---|---|---|---|
| Lamp housing: | Aluminium | Aluminium | Aluminium |
| Bracket: | Side-mounted brackets and T-track rail | Side-mounted brackets and T-track rail | Side-mounted brackets and T-track rail |
| Position lights: | Yes, white and yellow | Yes, white and yellow | Yes, white and yellow |
| Power: | 54W | 108 W | 162 W |
| Actual lumens: | 4900 lm | 9600 lm | 14600 lm |

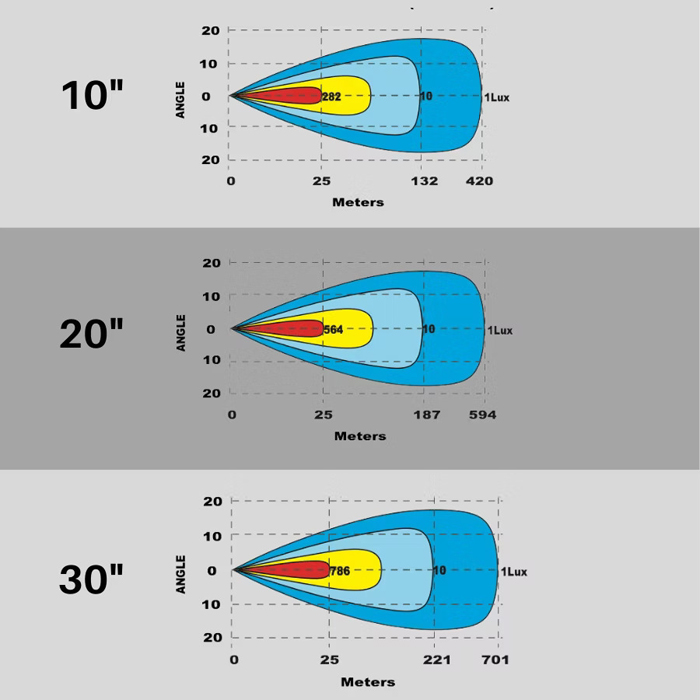

| Throw length 1 lux: | 420 m | 594 m | 701 m |
| Color temperature: | 5000 K | 5000 K | 5000 K |
| Voltage: | 9-36 V | 9-36 V | 9-36 V |
| Current consumption at 12V: | 4,5 A | 9,5 A | 14,9 A |
| Light pattern: | Driving Beam | Driving Beam | Driving Beam |
| IP-class: | IP68 samt IP69K | IP68 samt IP69K | IP68 samt IP69K |
| Reference number: | 20 | 50 | 50 |

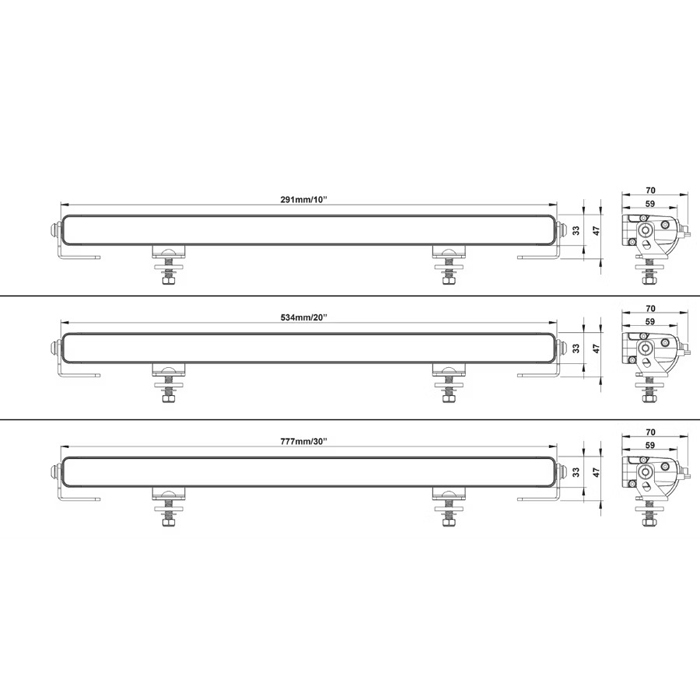

| Dimensons (LxDxH): | 291x70x33 mm | 534x70x33 mm | 777x70x33 mm |
