Product information

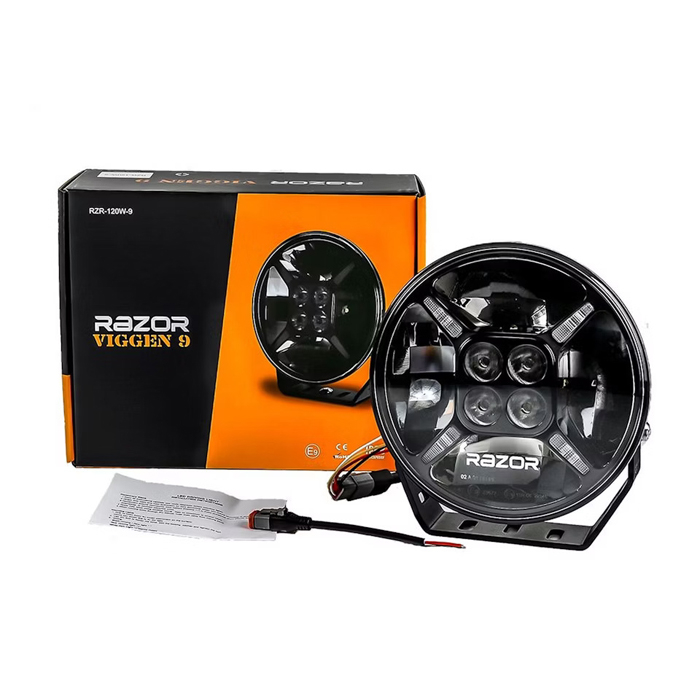

The Viggen 9 from Razor is a very slim and bright LED extra light with a cocky look. With the lamp's TIR reflectors, you get more efficient light on the road and make the most of each LED on the auxiliary light. The Viggen 9 delivers a range of 938 meters @ 0.25 lux (469 meters @ 1 lux). The light pattern "Driving beam" is long and wide.
The Viggen 9 comes with lavish quality components, robust mount, pressure equalization membrane, EMC-secured components as well as stylish position lights that have the function of being able to choose between white or orange light!

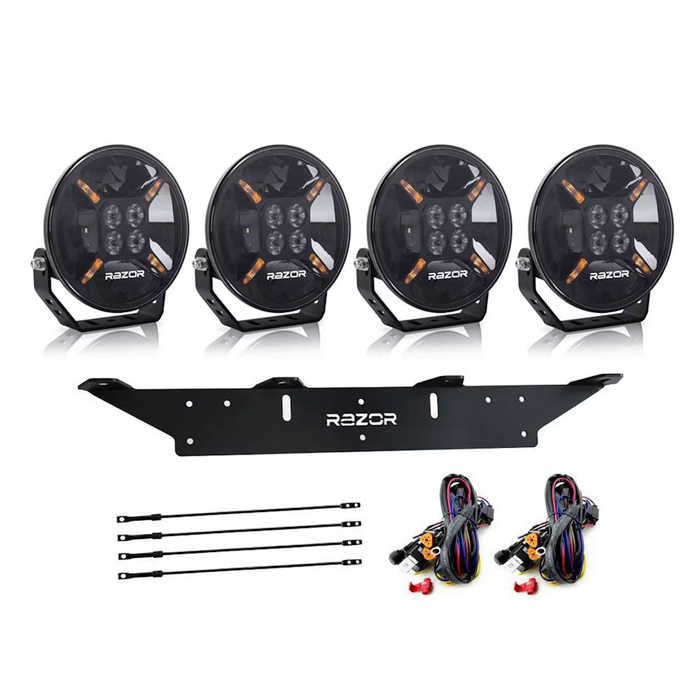

Includes
4x Razor Viggen 9" 120W
Mount, brace and wiring
Specification:
Installation instructions for cables are included with the product.
The Viggen 9 comes with lavish quality components, robust mount, pressure equalization membrane, EMC-secured components as well as stylish position lights that have the function of being able to choose between white or orange light!
Includes
4x Razor Viggen 9" 120W
Mount, brace and wiring
Specification:
- Power: 120W (4 pcs 20W diodes & 4 pcs 10W diodes)
- Multivolt 9-36V DC
- Luminous flux: 12,000 lumens
- Burning time: 50,000 hours

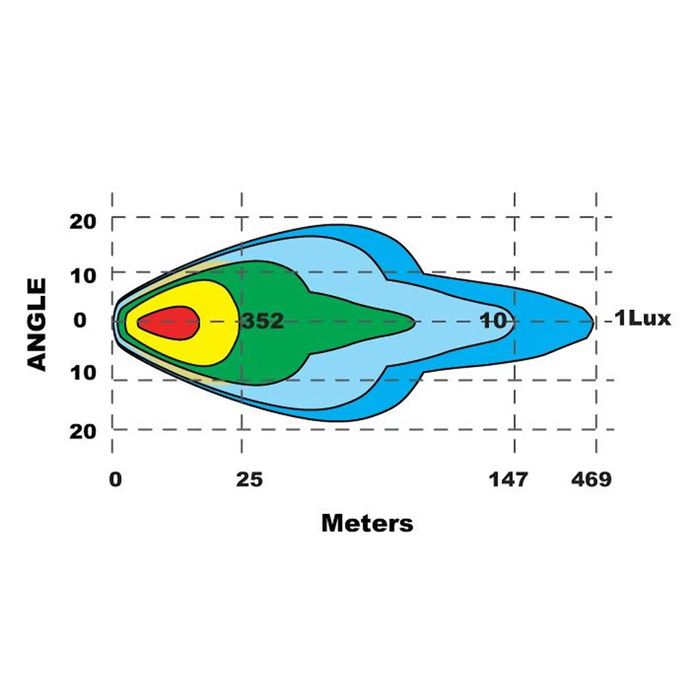

- Light length with 1 lamp: 469m @ 1 Lux
- Light length with 3 lamps: 812m @ 1 Lux
- Finished attachment for stabilization brace
- Color temperature: 5700K
- IP68 dust and waterproof
- E-approved (ECE R112 & R10)
- Reference: 50
- Polycarbonate lens
- Aluminum lamp housing

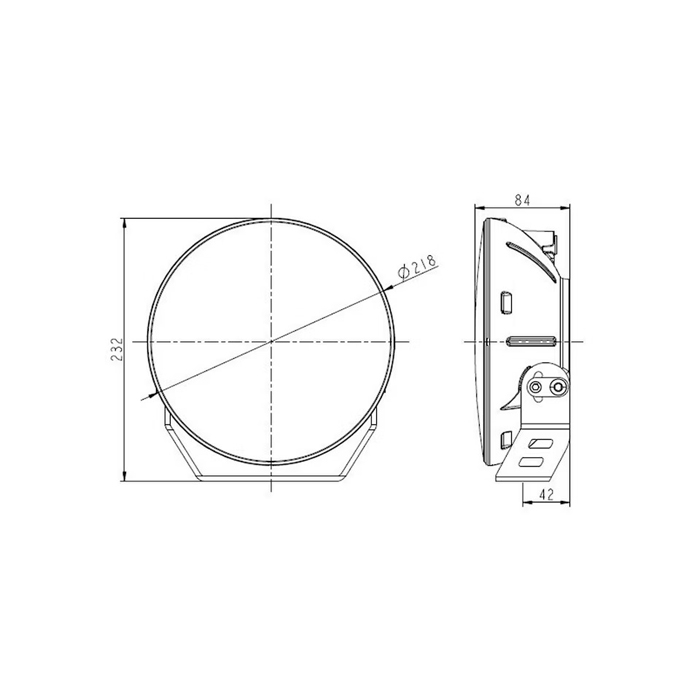

- 9" - 218mm in diameter
- Height: 232mm (incl. bracket)
- Depth: 84mm

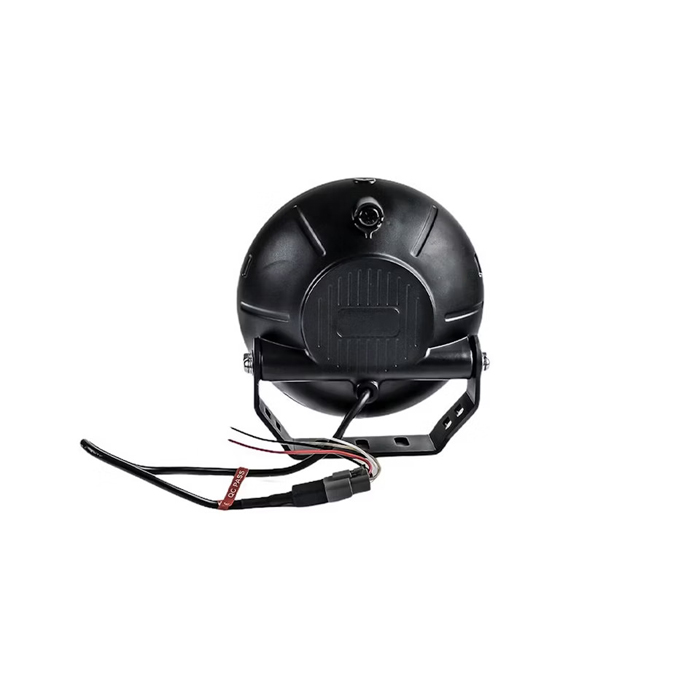

- Connector: DT-4 (adapter included to connect DT-3 cable set)
- Warranty: 3 years
Installation instructions for cables are included with the product.
- Red: Extra light (+)
- Black: Additional light/Position light (- earth)
- White: Position light (+) white light
- Yellow: Position light (+) yellow-orange light
