| Info | Compatible with |

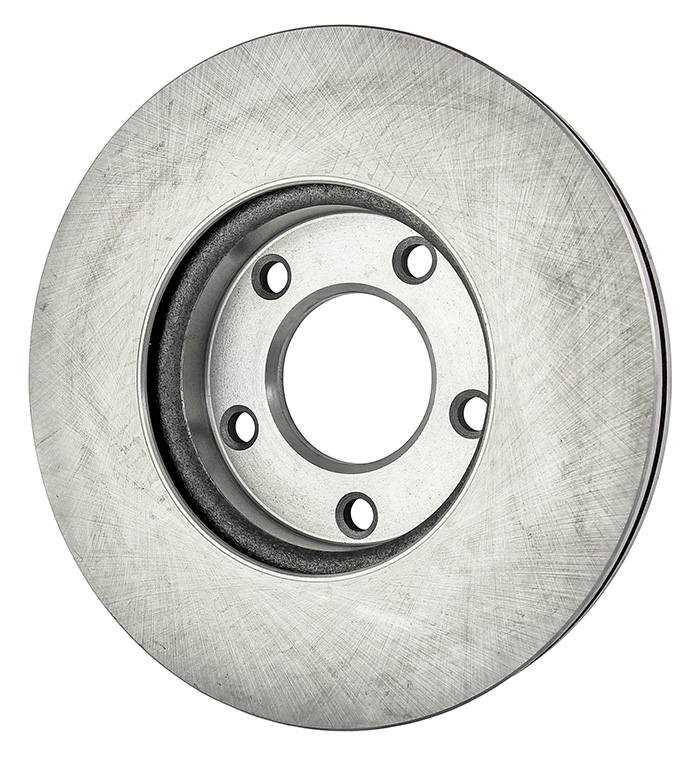

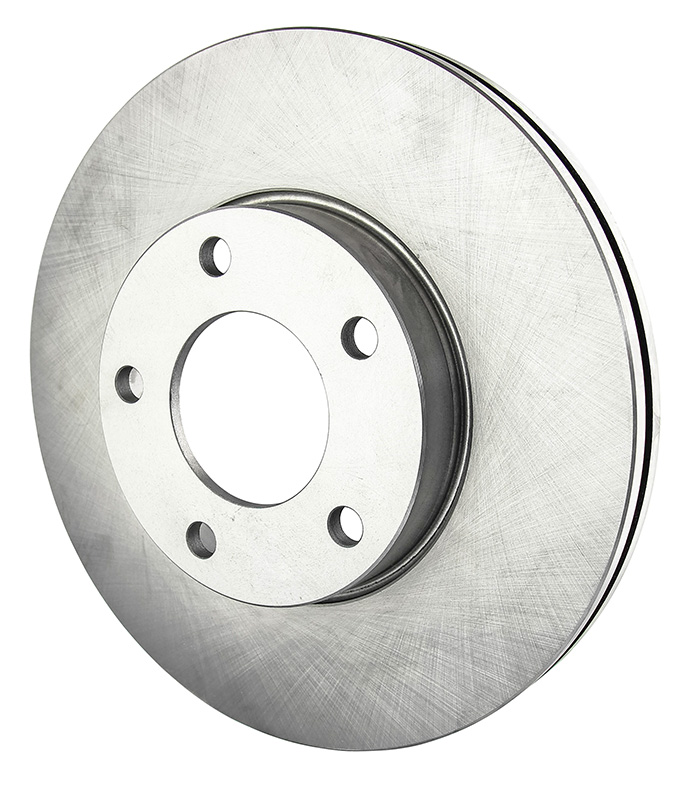

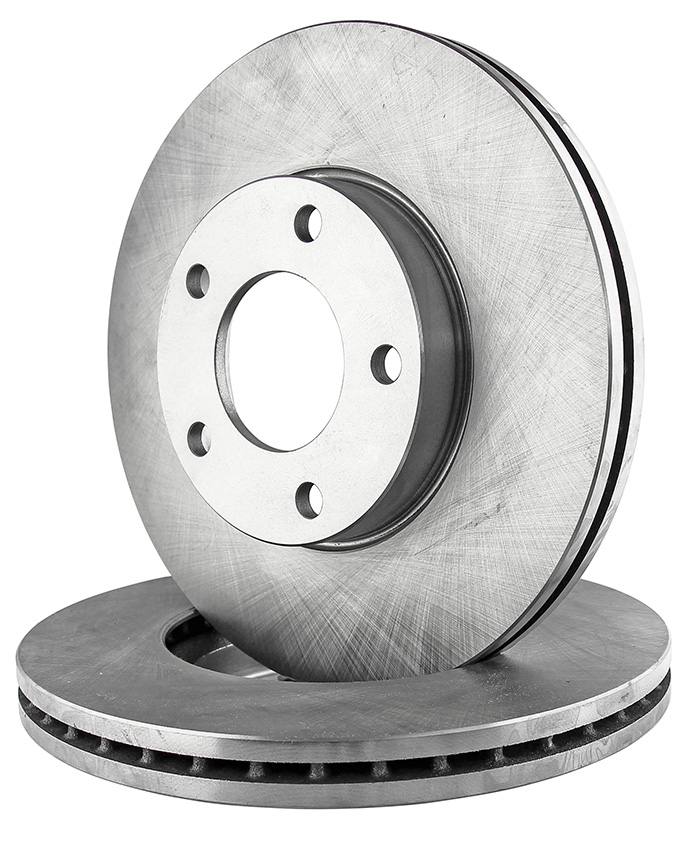

Product information
Specifications
| Bolt Hole Circle Ø [mm]: | 114,3 |
| Bore Ø [mm]: | 14 |
| Brake Disc Thickness [mm]: | 25 |
| Brake Disc Type: | Vented |
| Centering Diameter [mm]: | 72 |
| Fitting Position: | Front Axle |
| Height [mm]: | 48,5 |
| Hole Ø [mm]: | 114,3 |
| Hole-Ø [mm]: | 14 |
| Inner Diameter [mm]: | 140 |
| Minimum thickness [mm]: | 23 |
| Number of bolts/screws: | 278 |
| Number of Holes: | 5 |
| Original number: | BP4Y-33-25XA , BP4Y-33-25XB , BP4Y-33-25XC , BP4Y3325XB , C24Y-33-25XB , C24Y-33-25XC , C24Y-33-25XD |
| Outer Diameter [mm]: | 278 |
